590A CO2 @ 100% Duty Cycle
1600W Cooler
570A Mixed Gas M21 @ 100% Duty Cycle
1600W Cooler
Wire Size 0.9-2.0mm

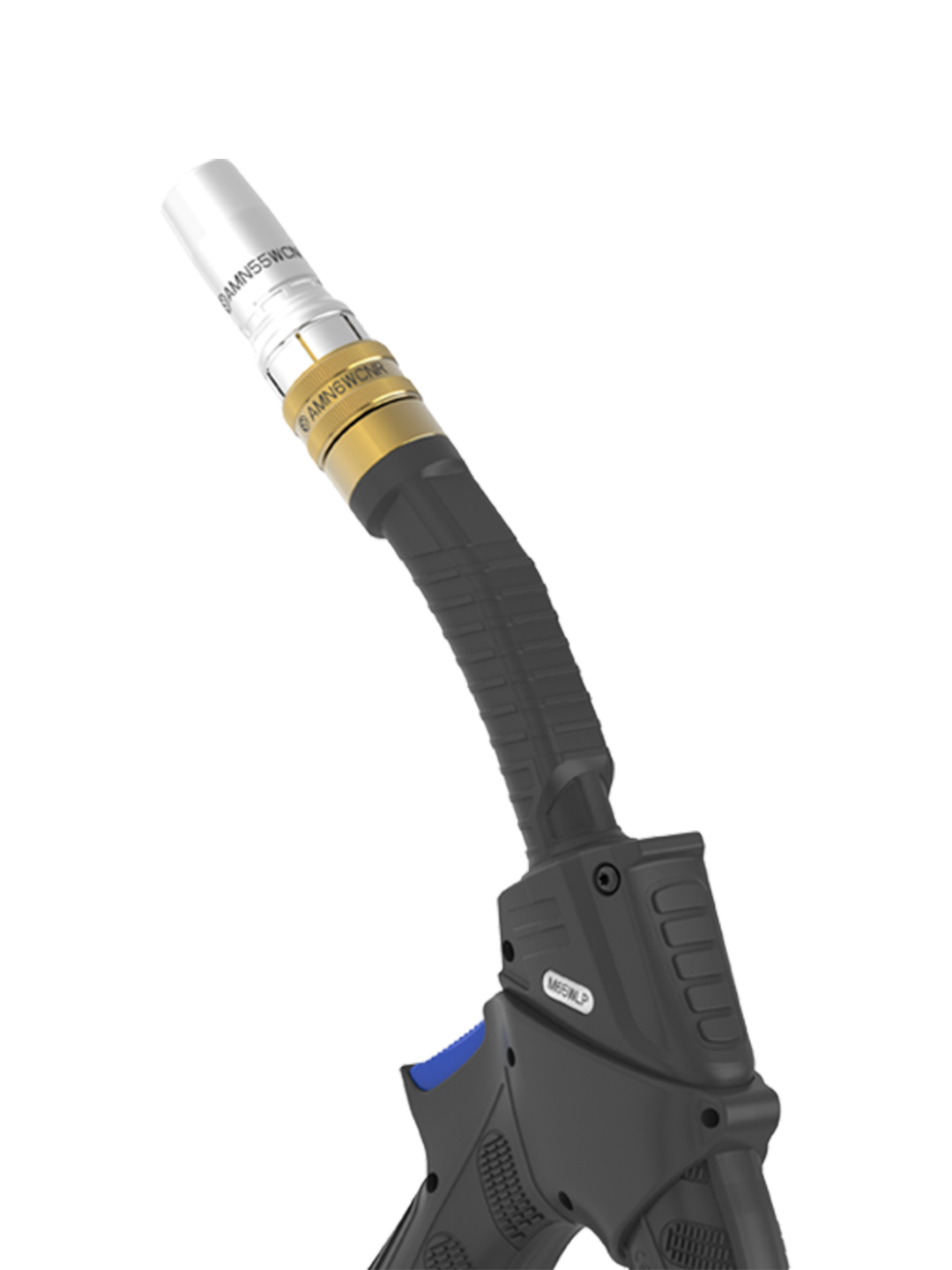

M65WLP – Liquid-Cooled High Performance Mig Welding Torch
The Arc M65WLP is ideal for high deposition and pulse applications with high reflected heat. Suitable for larger wire sizes, the 22° neck is better for feeding both stiff and soft wires.
A retrofit heat shield is available for high reflected heat applications.
Make Work Life Easier
Massive Gains in Productivity!
Arc Wear Parts are more efficient and last longer!
- Swan necks run up to 35% cooler
- Contact tips last up to 6 times longer
- Nozzles last up to 3 times longer
- Tip adaptors last up to 5 times longer
Technical Specification
Cooler Rating | Max.A | Pulse | Max. Load | |
---|---|---|---|---|
Liquid-Cooled | ||||
Rating: CO2 | 1600W | 590A | 26KW | |
1200W | 560A | 24KW | ||
1000W | 530A | 22KW | ||
Rating: Mixed Gas M21 | 1600W | 570A | 420A | 24KW |
1200W | 530A | 380A | 22KW | |
1000W | 500A | 360A | 19.5KW | |
Duty Cycle | 100% | 100% | ||
Wire Size | Filler Wires | Fe, Fe-MC / FC | 0.9-2.0mm | |
Filler Wires | Ss, Ss-MC /FC | 0.9-1.6mm | ||
Filler Wires | Al | 1.0-2.0mm | ||
Minimum Liquid Flow Rate | 1.5 l/min | |||
Minimum Liquid Inlet Pressure | 2.5 Bar | |||
Maximum Liquid Inlet Pressure | 5.0 Bar | |||
Maximum Liquid Inlet Temperature | 50oC | |||
Operating Temperature Range | -10…+40oC |

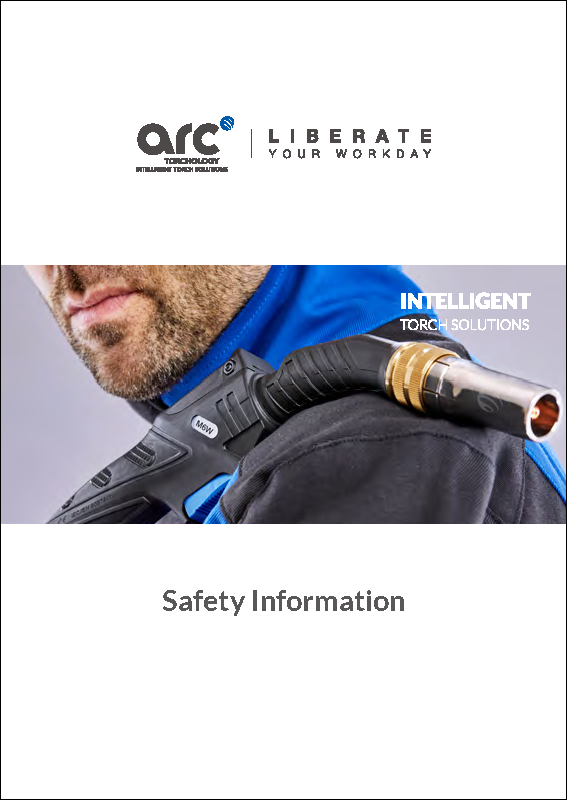

Downloads
Core Technologies
Key Elements

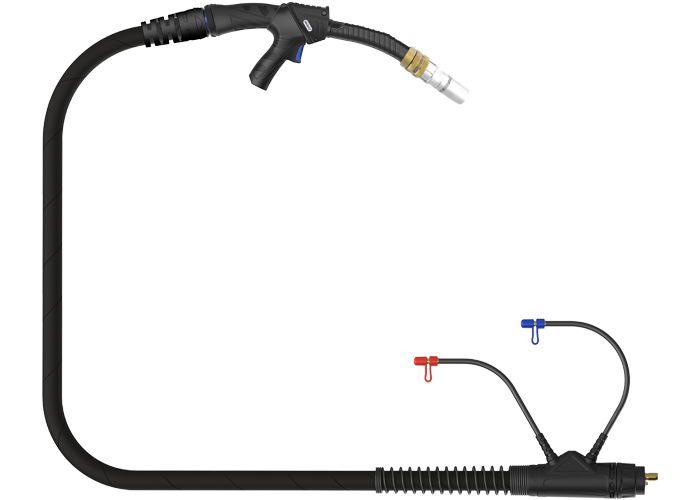

In The Box
