250A CO2 @ 60% Duty Cycle
220A Mixed Gas M21 @ 60% Duty Cycle
Wire Size 0.8-1.2mm

M22M – Air-Cooled Light Industrial Mig Welding Torch – Multijust

The Arc M22M is a great all-round industrial torch for high duty 200 Amp solid wires and low duty Pulse Mig Aluminium applications.

Weight, Balance and Flexibility

Make Work Life Easier

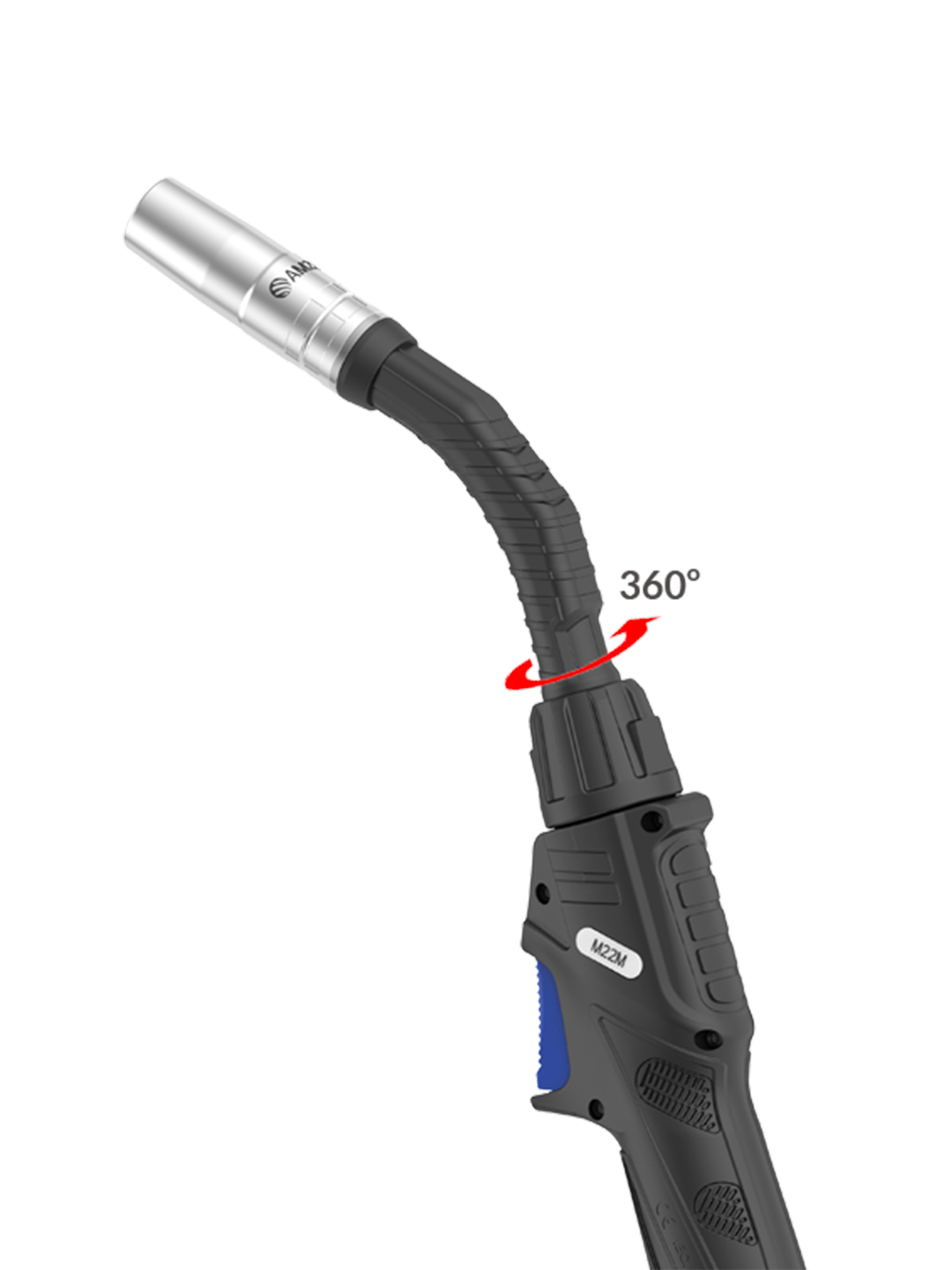

Fitted with a longer neck with 360° rotation, and an extended trigger as standard. Perfect for multiple positions in difficult to reach areas

Technical Specification

Cooling Method Air-Cooled
Rating: CO2 250A
Rating: Mixed Gas M21 220A
Rating: Pulse 120A
Duty Cycle 60%
Wire Size 0.8-1.2mm

Downloads

Product Catalogue – M Series

Arc M Series

Arc Multijust Set-up Guide

Multijust

Core Technologies

SIC Technology

Accumulated spatter breaks free when the nozzle is released

Spatter Isolation Chamber

Spatter created by the arc is held within a unique chamber that collects the molten metal droplets

Key Elements

Wear Parts

Exacting component design improves performance to weight ratios and wear parts durability

Swan Necks

Cutting edge material selection push the boundaries of established swan neck design

Handle Sets

Balanced and lightweight, reflecting the latest in ergonomic design principles

Liners

Developed from in-depth studies of wire types, process and gas coverage

Cable Sets

Improvements in welder comfort and reductions in welder fatigue

Key Benefits

  • Increased area pick up points on contact tips reduce power loss and improve current transfer
  • Unique insulation and tip adaptor design facilitates spatter release and nozzle removal
  • Left hand threaded tip adaptors negate accidental removal when spatter is embedded at the base of the nozzle
  • All wear parts are laser marked for ease of identification

Key Benefits

  • Fitted with a longer swan neck
  • 360° swan neck rotations
  • High tech polymers for improved insulation properties, impact strength and weight reduction
  • Neck to handle interface minimizes transfer of conducted heat to the handle
  • Neck ridges provide ‘finger grip’ under the glove

Key Benefits

  • Microswitch controlled triggers provide better resistance to shorting created by welding fume dust
  • Trigger life expectancy greater than 1 million cycles
  • ‘Plug and Play’ standard and extended options
  • Utilizes air gap technology, isolating the swan neck heat for cooler running handles
  • Knuckle joints and short cable support systems for improved positioning

Key Benefits

  • Steel liners for steel wire, steel metal core and flux core wires
  • Combi-liners for Aluminium, stainless-steel, stainless-steel metal core and flux core wires
  • Combi-liners utilize sliding/locking collet to aid positioning
  • Unique sealing ring solution for effective sealing from impurities in argon gas processes

Key Benefits

  • New cable structures for improved flexibility and weight reduction
  • Premium power levels yet up to 40% lighter than standard cables
  • Specified and constructed to last over 1 million flexes in life cycle testing

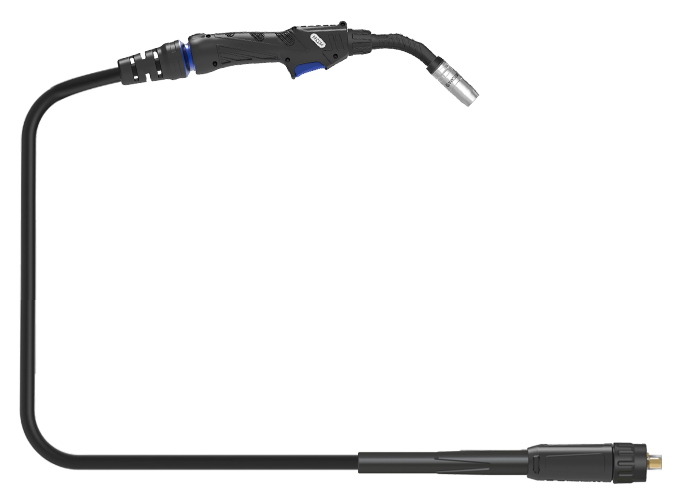

In The Box

Standard Set-up

Getting Started

Spanner
