590A CO2 @ 100% Duty Cycle
1600W Cooler
570A Mixed Gas M21 @ 100% Duty Cycle
1600W Cooler
Wire Size 0.9-2.0mm

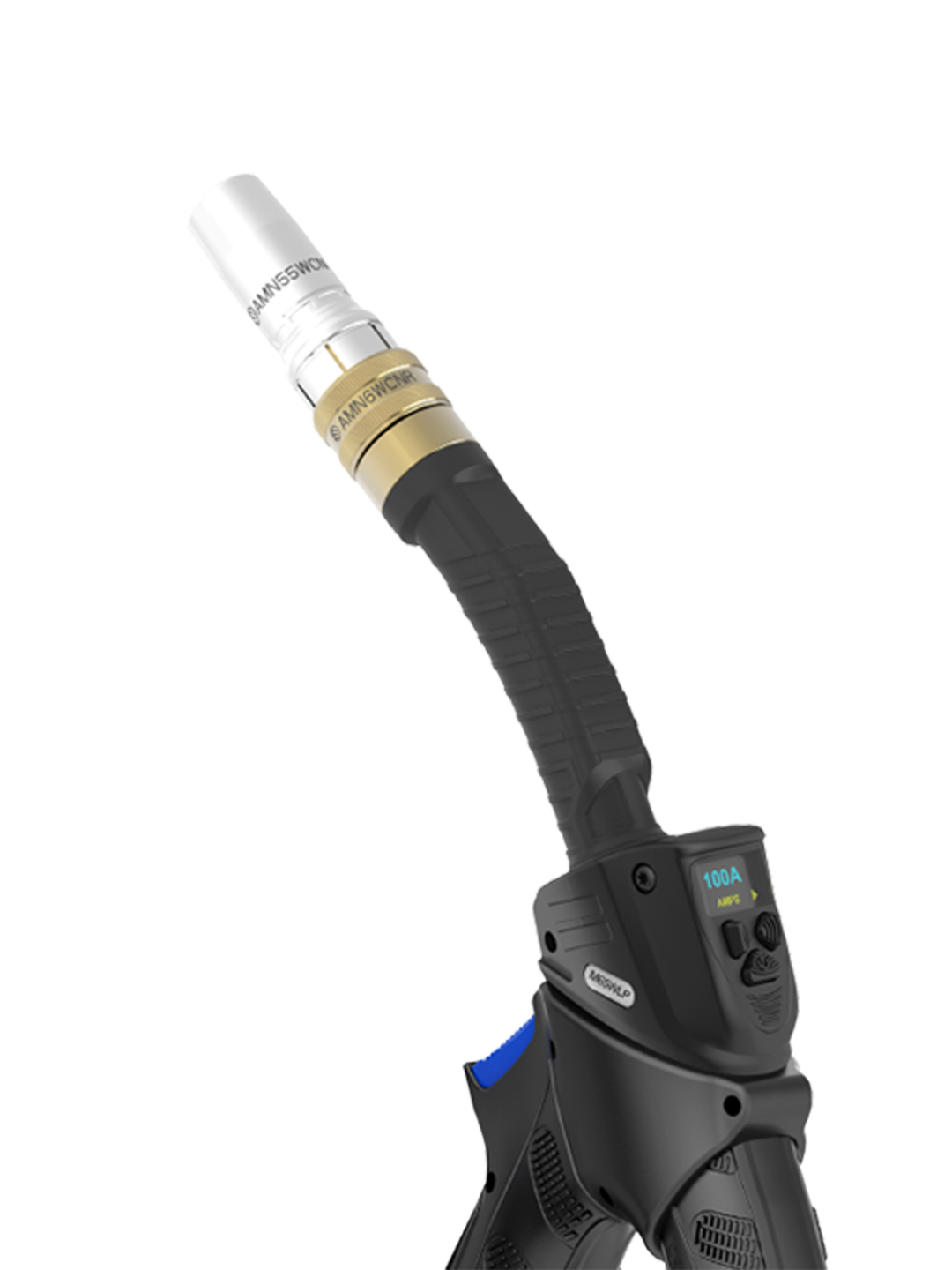

M65WLP – Digital Display – L/C High Performance Mig Welding Torch

The Arc M6WLP Digital Display is a high performance pistol grip Mig torch with a 22o neck, ideal for large diameter solid and difficult to feed wires, pulse and high deposition applications .

Equipped with high tech control of the welding equipment parameters by digitally interfacing control features on the torch handle with the machine.

Make Work Life Easier

Massive Gains in Productivity!

Arc Wear Parts are more efficient and last longer!

  • Swan necks run up to 35% cooler
  • Contact tips last up to 6 times longer
  • Nozzles last up to 3 times longer
  • Tip adaptors last up to 5 times longer

Technical Specification

Cooler Rating Max.A Pulse Max. Load
Liquid-Cooled
Rating: CO2 1600W 590A 26KW
1200W 560A 24KW
1000W 530A 22KW
Rating: Mixed Gas M21 1600W 570A 420A 24KW
1200W 530A 380A 22KW
1000W 500A 360A 19.5KW
Duty Cycle 100% 100%
Wire Size Filler Wires Fe, Fe-MC / FC 0.9-2.0mm
Filler Wires Ss, Ss-MC /FC 0.9-1.6mm
Filler Wires Al 1.0-2.0mm
Minimum Liquid Flow Rate 1.5 l/min
Minimum Liquid Inlet Pressure 2.5 Bar
Maximum Liquid Inlet Pressure 5.0 Bar
Maximum Liquid Inlet Temperature 50oC
Operating Temperature Range -10…+40oC

Downloads

Product Catalogue – Machine Control Series

Arc M Machine Control Series

Arc Liquid-Cooled Mig Set-up Guide

Core Technologies

Bi-Flow2 Technology

Lighter and cooler running torches with increased power to weight performance ratios

NRS Technology

Trouble free fitting and removal of the nozzle with a highly efficient transfer of heat between the base of the nozzle and the dual circuit chamber

SIC Technology

Accumulated spatter breaks free when the nozzle is released

OSW Technology

From drive roll to contact tip every small detail that affects soft wire welding has been considered

Re-engineered high capacity cooling chambers remove excessive heat at source.

Nozzle, tip adaptor and contacts tips are all force cooled.

Nozzle Retention System
NRS Technology combines a Liquid-Cooled nozzle seat and a push-on nozzle with a threaded retention system.

The design solutions force cool the nozzle, aid spatter removal and increase front-end wear parts durability.

Spatter Isolation Chamber

A uniquely designed spatter “well” accumulates molten metal particles safely and works in conjunction with the nozzle retention system for trouble free removal of the nozzle and spatter ring.

Optimized for Soft Wire Welding

Technical design solutions have resulted in a more efficient delivery of the filler metal from the machine to the torch head.

  • Smooth transfer of the filler metal from the drive rolls to the tip
  • Improved laminar gas and reduced downtime from ‘post weld clean up’

Key Elements

Wear Parts

Superior performance wear parts have pushed the performance levels way beyond currently accepted norms

Swan Necks

Cooler running torches with increased power to weight performance ratios

Handle Sets

High tech control of welding machine parameters by digitally interfacing control features from the torch handle

Liners

From drive roll to contact tip every small detail that affects soft wire welding has been considered

Cable Sets

Clever material selection combines flexibility, durability and performance

Key Benefits

  • Large area tapered face on contact tips improves current transfer.
  • Insulator ‘snap fits’ onto the tip adaptor.
  • A 360° turn on the nozzle ring forces the nozzle forward and breaks off accumulated spatter.
  • All wear parts are laser marked for ease of identification.

Key Benefits

  • Double circuit conductor and nozzle seat cooling
  • Overmoulded body armour for improved insulation and impact strength
  • Neck ridges provide ‘finger grip’ under the welders glove

Key Benefits

  • Infinite control of equipment and welding parameters from the torch handle
  • Real time readout display



  • 22º neck and pistol handle for difficult to feed wires
  • Utilizes air gap technology, isolating radiated heat for cooler running handles
  • Minimized handle to torch body interface isolates conducted heat
  • Large surface area soft grips

Key Benefits

  • Soft wire liners for aluminium, aluminium alloy and copper alloy wires
  • Combi-liners for heavy duty aluminium welding, stainless steel, stainless steel metal core and flux core wires
  • Steel liners for steel wire, steel metal core and flux core wires
  • Optional stainless steel liners for high deposition stainless wire applications

Key Benefits

  • Power cables utilize superior grade copper conductors for added protection against poor water quality and contaminants
  • Specified and constructed to last over 1 million flexes in life cycle testing
  • Modular designed housing allows exit easy cable reconfiguration

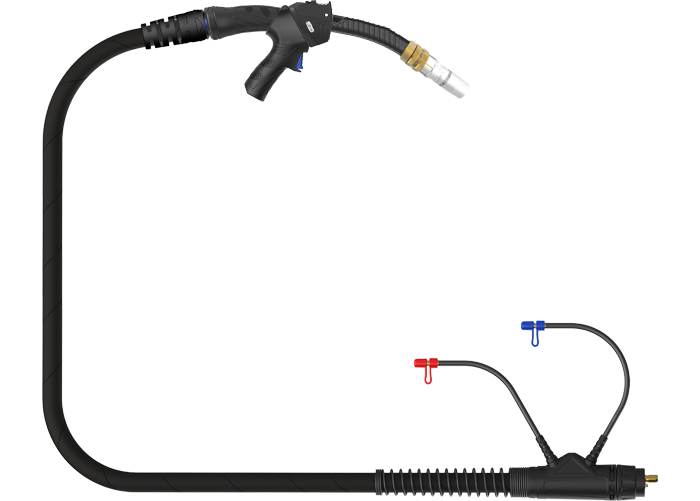

In The Box

Standard Set-up

Safety Information

Wear Parts Spanner
