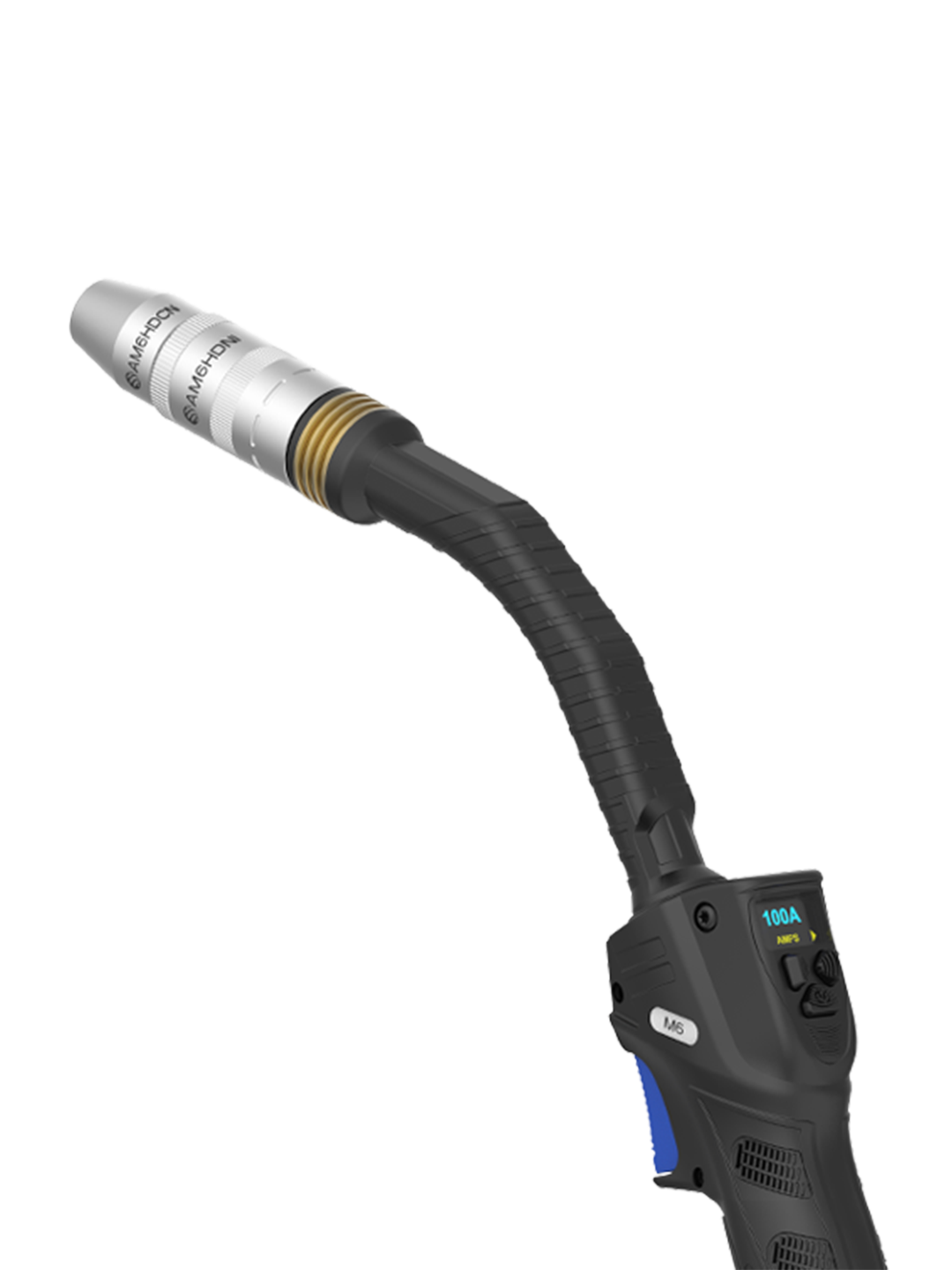

M6 – Digital Display

An indestructible 400 Amp air-cooled production torch.
Digitally control machine parameters direct via digital handle display.
430A CO2 @ 60% Duty Cycle
400A Mixed Gas M21 @ 60% Duty Cycle
Wire Size 0.9-2.0mm

M6 – Digital Display – Air-Cooled High Performance Mig Welding Torch

The ground-breaking benefits of an Arc M6 also offer high tech control of the welding equipment parameters by digitally interfacing control features on the torch handle with the machine.

Make Work Life Easier

Massive Gains in Productivity!

Arc Wear Parts are more efficient and last longer!

  • Contact tips last up to 6 times longer
  • Nozzles last up to 3 times longer
  • Tip adaptors last up to 5 times longer

Technical Specification

Cooling Method Air-Cooled Max. Load
Rating: CO2 430A 17.6KW
Rating: Mixed Gas M21 400A 14.8KW
Duty Cycle 60%
Wire Size 0.9-2.0mm

Downloads

Arc Machine Control Series

Product Catalogue

Download
Arc M Air-Cooled High Performance Series

Set-Up Guide

Download
View all downloads

Key Elements

Wear Parts

Exacting component design improves performance to weight ratios and wear parts durability

Swan Necks

Cutting edge material selection push the boundaries of established swan neck design

Handle Sets

High tech control of welding machine parameters by digitally interfacing control features from the torch handle

Liners

Developed from in-depth studies of wire types, process and gas coverage

Cable Sets

Improvements in welder comfort and reductions in welder fatigue

Key Benefits

  • Contact Tips made from CuCrZr with M12 thread
  • Increased area pick up points on contact tips reduce power loss and improve current transfer
  • Left hand threaded tip adaptors negate accidental removal when spatter is embedded at the base of the nozzle
  • All wear parts are laser marked for ease of identification

Key Benefits

  • High tech polymers for improved insulation properties, impact strength and weight reduction
  • Neck to handle interface minimizes transfer of conducted heat to the handle
  • Neck ridges provide ‘finger grip’ under the glove

Key Benefits

  • Infinite control of equipment and welding parameters from the torch handle
  • Real time readout display

  • Microswitch controlled triggers provide better resistance to shorting created by welding fume dust
  • Trigger life expectancy greater than 1 million cycles
  • Utilizes air gap technology, isolating the swan neck heat for cooler running handles
  • Knuckle joints and short cable support systems for improved positioning

Key Benefits

  • Steel liners for steel wire, steel metal core and flux core wires
  • Combi-liners for aluminum, stainless steel, stainless steel metal core and flux core wires
  • Unique sealing ring solution for effective sealing from impurities in argon gas processes

Key Benefits

  • New cable structures for improved flexibility and weight reduction
  • SuperSoft -20 Premium power cables, perfect for extreme subzero working temperatures, and up to 40% lighter than standard cables
  • Specified and constructed to last over 1 million flexes in life cycle testing

Core Technologies

SIC Technology

Accumulated spatter breaks free when the nozzle is released

OSW Technology

From drive roll to contact tip every small detail that affects soft wire welding has been considered

Spatter Isolation Chamber

Spatter created by the arc is held within a unique chamber that collects the molten metal droplets

Optimized for Soft Wire Welding

Technical design solutions have resulted in a more efficient delivery of the filler metal from the machine to the torch head.

  • Smooth transfer of the filler metal from the drive rolls to the tip
  • Improved laminar gas and reduced downtime from ‘post weld clean up’

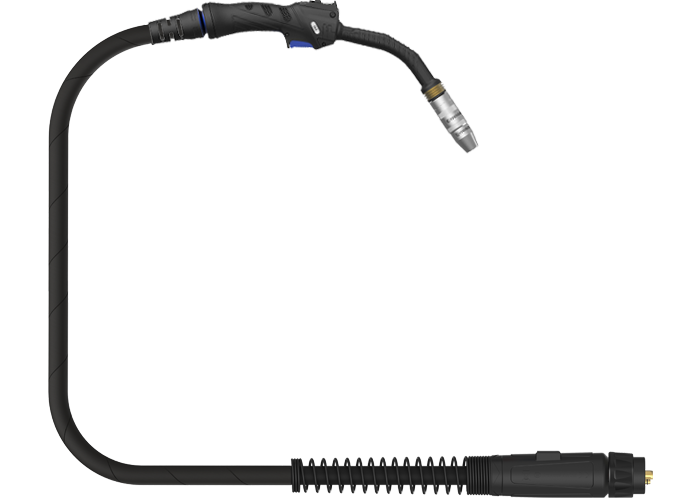

In The Box

Standard Set-up

Getting Started

Spanner
