550A DC @ 100% Duty Cycle
385A AC @ 100% Duty Cycle
Electrode Size: 1.6-6.4mm / 1/16”-1/4”

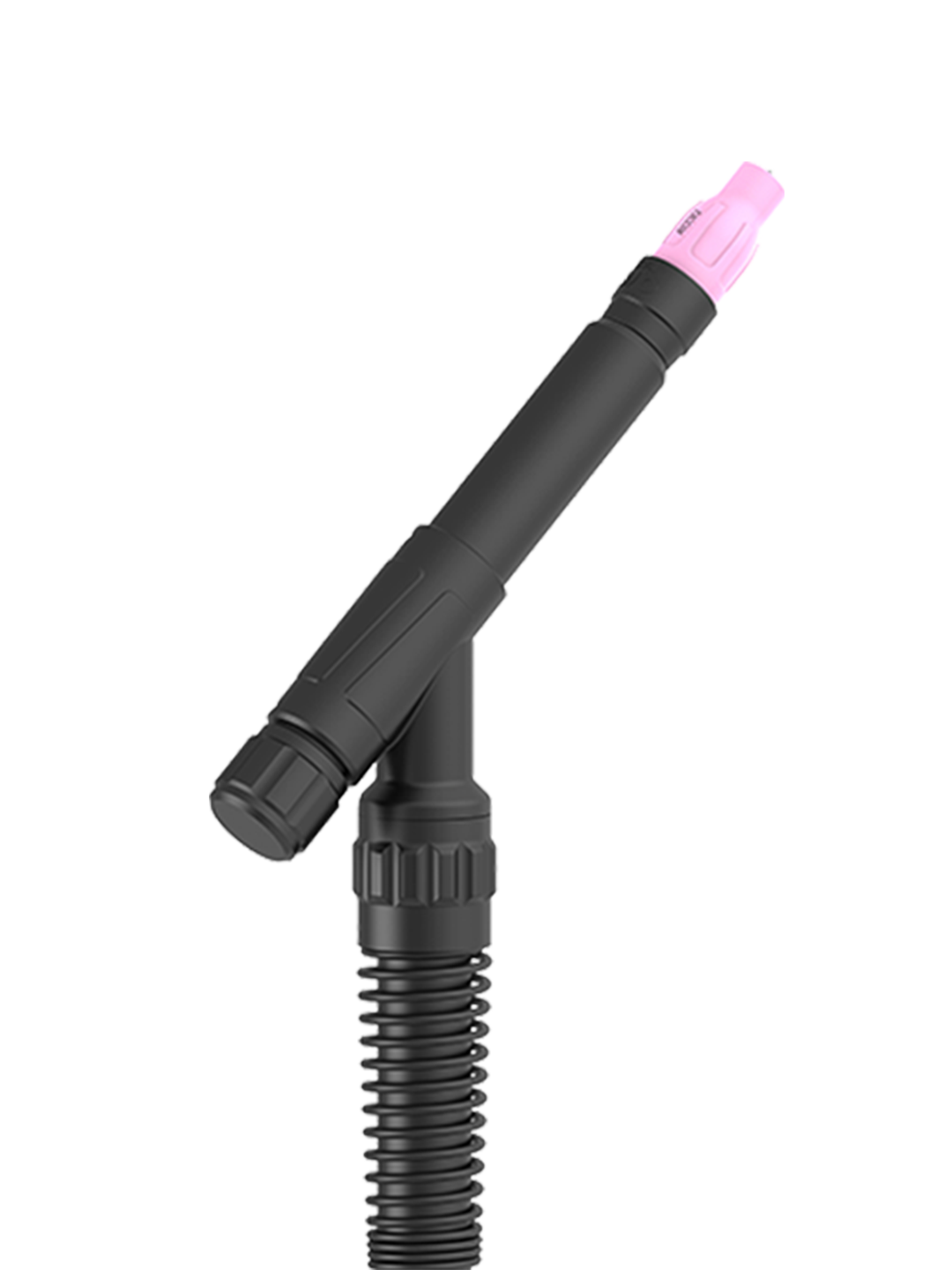

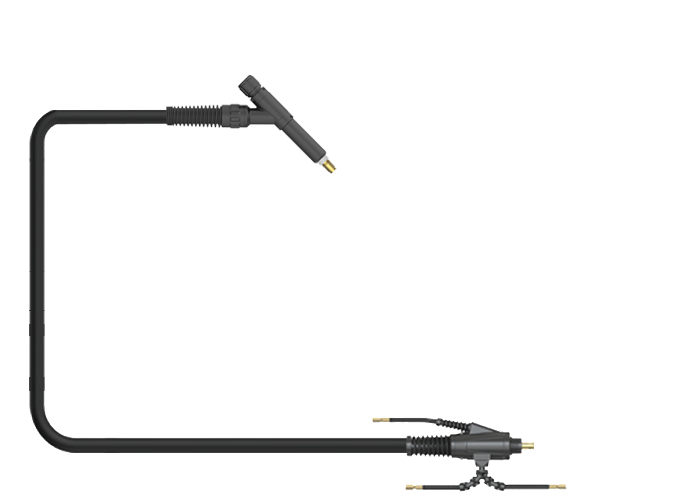

T5WA – Automatic / Cobotic Liquid-Cooled High Performance Tig Welding Torch
A High Performance Automatic/Cobotic Tig Torch for consistent, high weld quality in the most demanding applocations.
Try it today!
For high weld quality in the most demanding applications
Arc Wear Parts Last Longer!
- Ceramics will last 5 times longer
- Back Caps will last 10 times longer
- Gas Lens Bodies will last 20 times longer
- Collet Bodies will last 10 times longer
Technical Specification
| Cooling Method | Liquid-Cooled | |
|---|---|---|
| Length | 4m | 8m |
| Rating: DC 1200W | 550A | 450A |
| Rating: AC 1200W | 385A | 315A |
| Rating: DC 1600W | 550A | 450A |
| Rating: AC 1600W | 385A | 315A |
| Duty Cycle: | 100% | 100% |
| Electrode Size: | 1.6-6.4mm / 1/16″-1/4″ | |
| Minimum Liquid Flow Rate | 1.5 l/min | |
| Minimum Liquid Inlet Pressure | 2.5 Bar | |
| Maximum Liquid Inlet Pressure | 5.0 Bar | |
| Maximum Liquid Inlet Temperature | 50oC | |
| Operating Temperature | -20oC..+40oC |
Downloads
Core Technologies
Increased Capacity Liquid Cooling Systems
Re-engineered high-capacity cooling chambers remove excessive heat at source.
Gas Stream Cooling
A highly effective series of passages and wells force cools the collet.
The cooler running collet assembly maximizes conductivity and extends consumable life.
Heat Zone Isolation Technology
Transferred heat from the ceramic cup is isolated by a unique external barrier.
Conducted heat is isolated using large air pockets within the torch body structure resulting in cooler running torches with increased power to weight performance ratios.
Key Elements
In The Box
Collet Body Set-up
Gas Lens Set-up
Collet Body Starter Kit
Quick Fit Plug Kit
Safety Guide
<--- scroll --->
Gas Lens Starter Kit
Quick Fit Plug Kit
Safety Guide
