450A DC @ 100% Duty Cycle
315A AC @ 100% Duty Cycle
Electrode Size: 1.6-4.8mm / 1/16”- 3/16”

T4WFX – Liquid-Cooled High Performance Flexi-Tig Welding Torch

High performance Flex Body Torches have been rigorously tested* with over 50 flexes (with no reduction in duty cycle) – double the life of conventional flexible Liquid-Cooled TIG torch bodies!

Try it today!
T4W

Less Downtime

Arc Wear Parts Last Longer!

  • Flex Bodies will last 2 times longer
  • Ceramics will last 5 times longer
  • Back Caps will last 10 times longer
  • Gas Lens Bodies will last 20 times longer
  • Collet Bodies will last 10 times longer

*like for like laboratory tested continuously at 45°

Technical Specification

Cooling Method Liquid-Cooled
Length 4m 8m
Rating: DC 1200W 450A 400A
Rating: AC 1200W 315A 280A
Rating: DC 1600W 450A 450A
Rating: AC 1600W 315A 315A
Duty Cycle: 100% 60%
Electrode Size: 1.6-4.8mm / 1/16″-3/16″
Minimum Liquid Flow Rate 1.5 l/min
Minimum Liquid Inlet Pressure 3.0 Bar
Maximum Liquid Inlet Pressure 5.0 Bar
Maximum Liquid Inlet Temperature 50oC

Downloads

Product Catalogue – T Series

Arc T Series

Arc T Set-Up Guide-1

EN/DA/DE/FR/IT/NL

Arc T Set-Up Guide-2

EN/ES/PL/PT/RU/SV/CH

Core Technologies

Bi-Flow Technology

Higher powered performance from a much smaller footprint

Force Cooling Technology

The cooler running collet assembly maximizes conductivity and extends consumable life

HZI Technology

Cooler running torches with increased power to weight performance ratios

TRS Technology

Quick and easy extension of the electrode without the removal of any other wear parts

Increased Capacity Liquid Cooling Systems

Re-engineered high-capacity cooling chambers remove excessive heat at source.

Gas Stream Cooling

A highly effective series of passages and wells force cools the collet.

The cooler running collet assembly maximizes conductivity and extends consumable life.

Heat Zone Isolation Technology

Transferred heat from the ceramic cup is isolated by a unique external barrier.

Conducted heat is isolated using large air pockets within the torch body structure resulting in cooler running torches with increased power to weight performance ratios.

Tungsten Release System

Trouble free extension of the electrode with 180° twist of the back cap.

Key Elements

Wear Parts

Every component delivers superior performance for increased Arc time and lower overall production costs

Torch Bodies and Back Caps

Step change performance levels achieved with the development of revolutionary cooling and heat zone isolation techniques

Handle Sets

Fits seamlessly into the hand. 'Plug and play' switch options for machine control functionality and Point of Sale configuration

Cable Systems

Clever material selection combines flexibility, durability and performance

Key Benefits

  • Push-on / easy grip ceramics
  • One piece collet/collet body – no twisting
  • Heat Zone Isolator ensures 100% ceramic and electrode alignment
  • Optional large gas lens for increased gas envelope

Key Benefits

  • Cooler running torch bodies at elevated power levels

  • Cooler running components increase wear parts life expectancy

  • Advanced material selection and component design enhances flex neck life expectancy

  • Superior grade phenolics for maximum thermal resistance and improved durability of back caps

  • Liquid-Cooled Flex Life > 50 Flexes –Double the life of a standard Liquid-Cooled flex body

Key Benefits

  • Utilizes air gap technology for cooler running handles
  • Hard and soft material elements for an effortless grip
  • Fully interchangeable ‘plug and play’ modules with analogue and digital control options
  • Infinite adjustment of welding parameters from the torch handle
  • Optional integrated handle readout displays all welding and machine parameters in “real time”

Key Benefits

  • Rapid fit and modular rear end systems ensure point of use re-configuration of power input, water/gas hose and control lead terminations

  • Superior grade rubbers ensure cable termination integrity and hose package longevity – (Lab tested to over 1 million flexes)

  • Front end leather cover and knuckle joint combine for a really supple cable at the welders wrist.

In The Box

Collet Body Set-up
Gas Lens Set-up

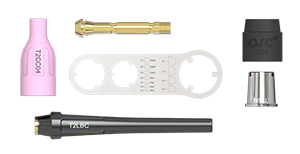

Collet Body Starter Kit

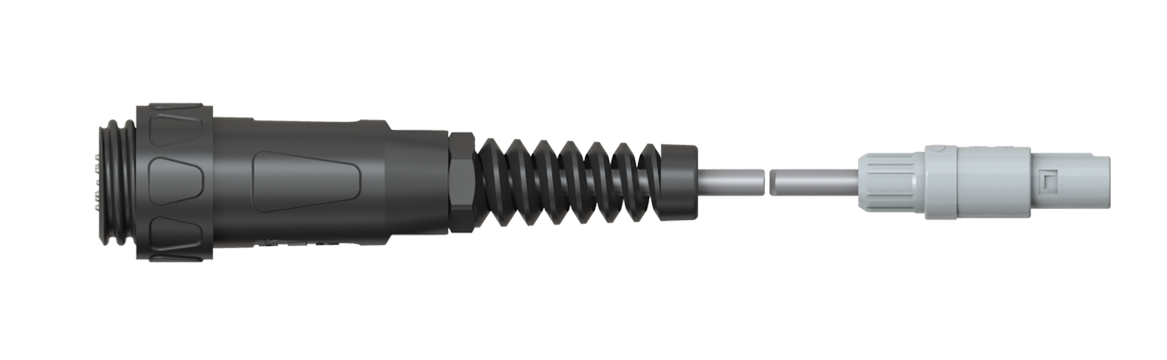

Quick Fit Plug Kit

Safety Guide

<--- scroll --->

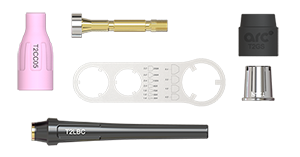

Gas Lens Starter Kit

Quick Fit Plug Kit

Safety Guide
