M6WP Analogue – L/C Mig Welding Torch – Pistol Style

The Arc M6WP is a high performance pistol grip Mig torch with a 22o neck, ideal for large diameter solid and difficult to feed wires, pulse and high deposition applications.

The ground-breaking benefits of an Arc M6W with either 2 or 4 way analogue control of the welding parameters via the torch handle.

Make work life easier

Try it Today!
M6OSWP Analogue

Improved feedability of large wires with high power output

Arc Wear Parts are more efficient and last longer!

  • Nozzles run up to 75% cooler
  • Swan necks run up to 35% cooler
  • Contact tips last up to 6 times longer
  • Nozzles last up to 3 times longer
  • Tip adaptors last up to 5 times longer

Technical Specification

Cooler Rating Max.A Pulse Max. Load
Liquid-Cooled
Rating: CO2 1600W 580A 25KW
1200W 540A 23KW
Rating: Mixed Gas M21 1600W 560A 400A 24KW
1200W 510A 360A 20KW
Duty Cycle 100% 100%
Wire Size Filler Wires Fe, Fe-MC / FC 0.9-2.0mm
Filler Wires Ss, Ss-MC /FC 0.9-1.6mm
Filler Wires Al 1.0-2.0mm
Minimum Liquid Flow Rate 1.5 l/min
Minimum Liquid Inlet Pressure 3.0 Bar
Maximum Liquid Inlet Pressure 5.0 Bar
Maximum Liquid Inlet Temperature 50o
Operating Temperature Range -10…+40oC

Downloads

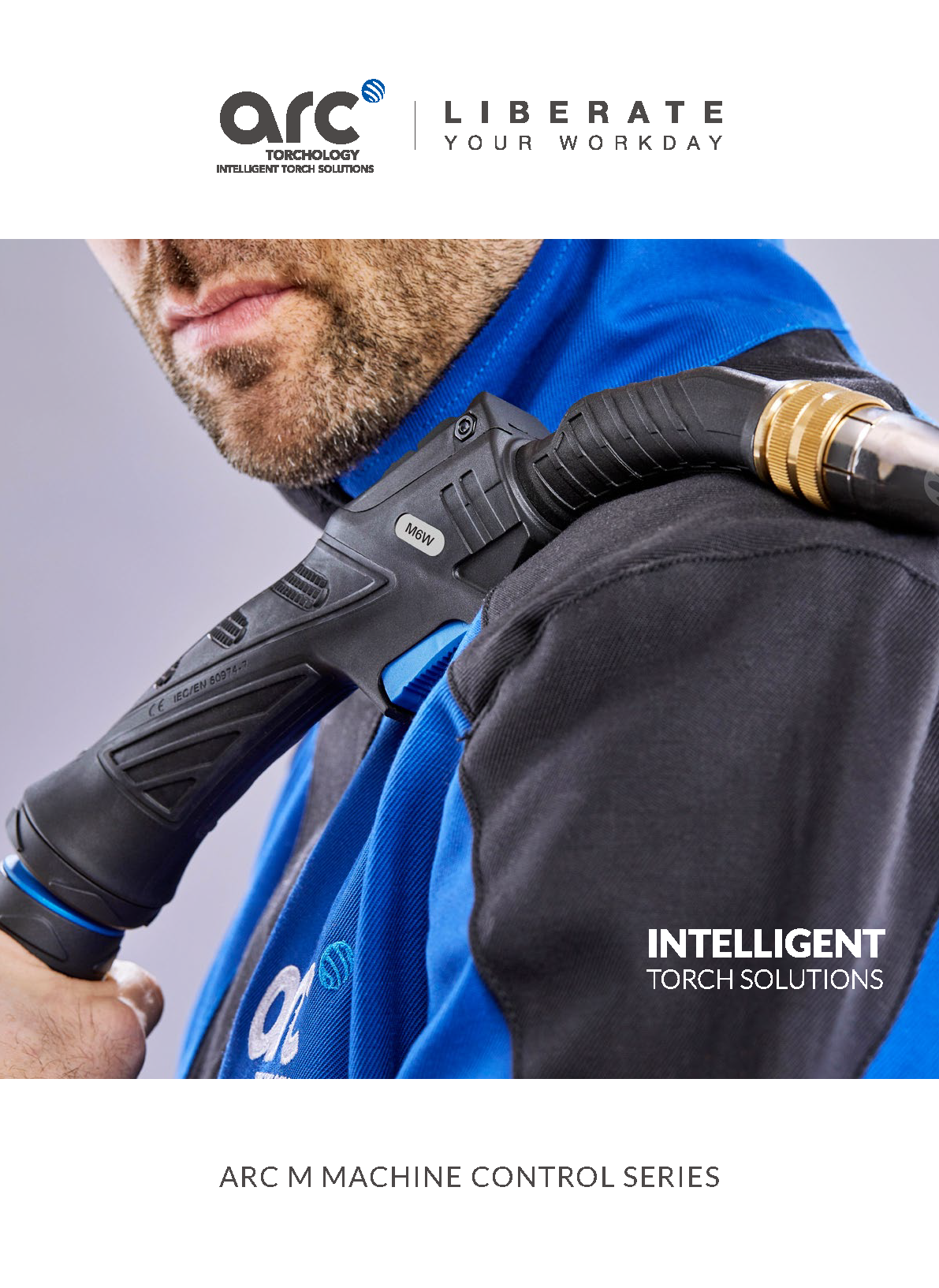

Product Catalogue – Machine Control

Arc M Machine Control Series

Download
Arc M High Performance Set-up Guide

M6WP/ M6OSWP / Machine Control

Download
View all downloads

Core Technologies

Bi-Flow Technology

Cooler running torches with increased power to weight performance ratios

Force Cool Technology

Cooler running contact tips maximize conductivity and extend consumable life

NRS Technology

Trouble free fitting and removal of the nozzle with a highly efficient transfer of heat between the base of the nozzle and the dual circuit chamber

SIC Technology

Accumulated spatter breaks free when the nozzle is released

Re-engineered high capacity cooling chambers remove excessive heat at source.

Nozzle, tip adaptor and contacts tips are all force cooled.

Gas Stream Cooling
A highly effective series of passages and wells have been developed to force cool the contact tip.

The cooler running contact tips maximize conductivity and extend consumable life.

Nozzle Retention System
NRS Technology combines a Liquid-Cooled nozzle seat and a push-on nozzle with a threaded retention system.

The design solutions force cool the nozzle, aid spatter removal and increase front-end wear parts durability.

Spatter Isolation Chamber

A uniquely designed spatter “well” accumulates molten metal particles safely and works in conjunction with the nozzle retention system for trouble free removal of the nozzle and spatter ring.

Key Elements

Wear Parts

Superior performance wear parts have pushed the performance levels way beyond currently accepted norms

Swan Necks

Cooler running torches with increased power to weight performance ratios

Handle Sets

Control of simple machine commands via analogue switches from the torch handle

Liners

From drive roll to contact tip every small detail that affects soft wire welding has been considered

Cable Sets

Clever material selection combines flexibility, durability and performance

Key Benefits

  • Large area tapered face on contact tips improves current transfer
  • Insulator ‘snap fits’ onto the tip adaptor to prevent accidental loss
  • OSW insulators incorporate a unique rubber gasket for additional protection against atmospheric contamination
  • A 360° turn on the nozzle ring forces the nozzle forward and breaks off accumulated spatter
  • All wear parts are laser marked for ease of identification

Key Benefits

  • Double circuit conductor and nozzle seat cooling
  • 22° bend angle for large and more difficult to feed wires over 1.2-1.6 mm
  • Contact tip centrality guaranteed to +- 0.05 mm
  • Neck ridges provide ‘finger grip’under the welders glove

Key Benefits

  • The easiest system to integrate and suitable for after-market torch replacement of OEM products
  • Welding parameters can be changed via ‘Plug and Play’ 2 or 4 way control modules
  • Signals are sent through a 5-core switch lead and separate control plug
  • Utilizes air gap technology, isolating radiated heat for cooler running handles
  • 22º neck and pistol handle for difficult to feed wires

Key Benefits

  • Soft wire liners for aluminium and copper alloy wires
  • Combi-liners for stainless steel and stainless steel metal core and flux core wires
  • Steel liners for steel wire, steel metal core and flux core wires
  • Optional stainless steel liners for high deposition stainless wire applications
  • All OSW series torches come with a set-up kit for perfect liner installation

Key Benefits

  • Power cables utilize superior grade copper conductors for added protection against poor water quality and contaminants
  • Specified and constructed to last over 1 million flexes in life cycle testing
  • Modular designed housing allows exit easy cable reconfiguration

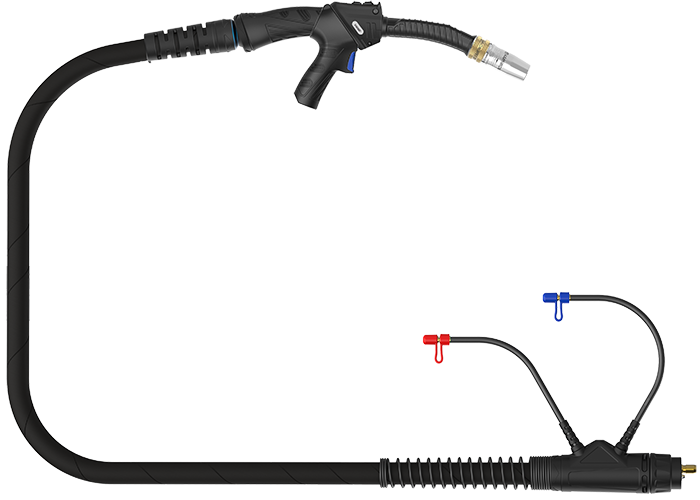

In The Box

Standard Set-up

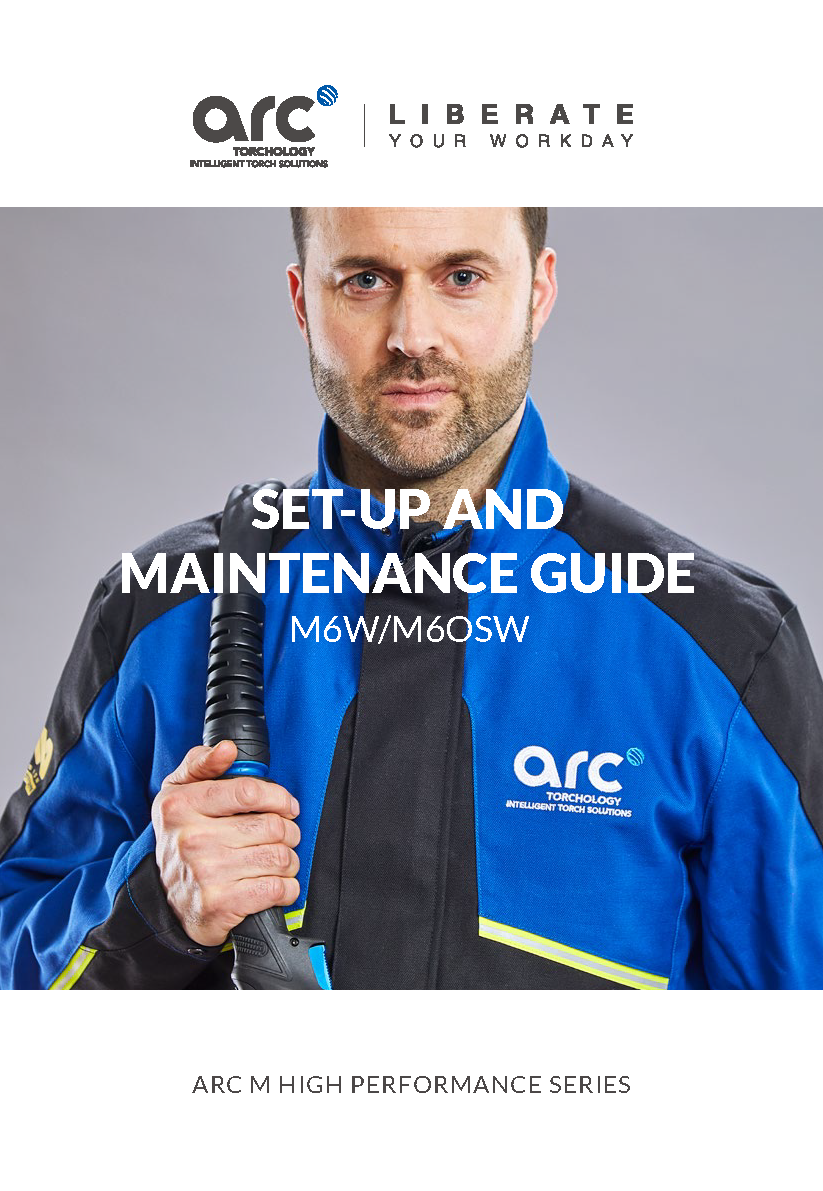

Set-Up Guide

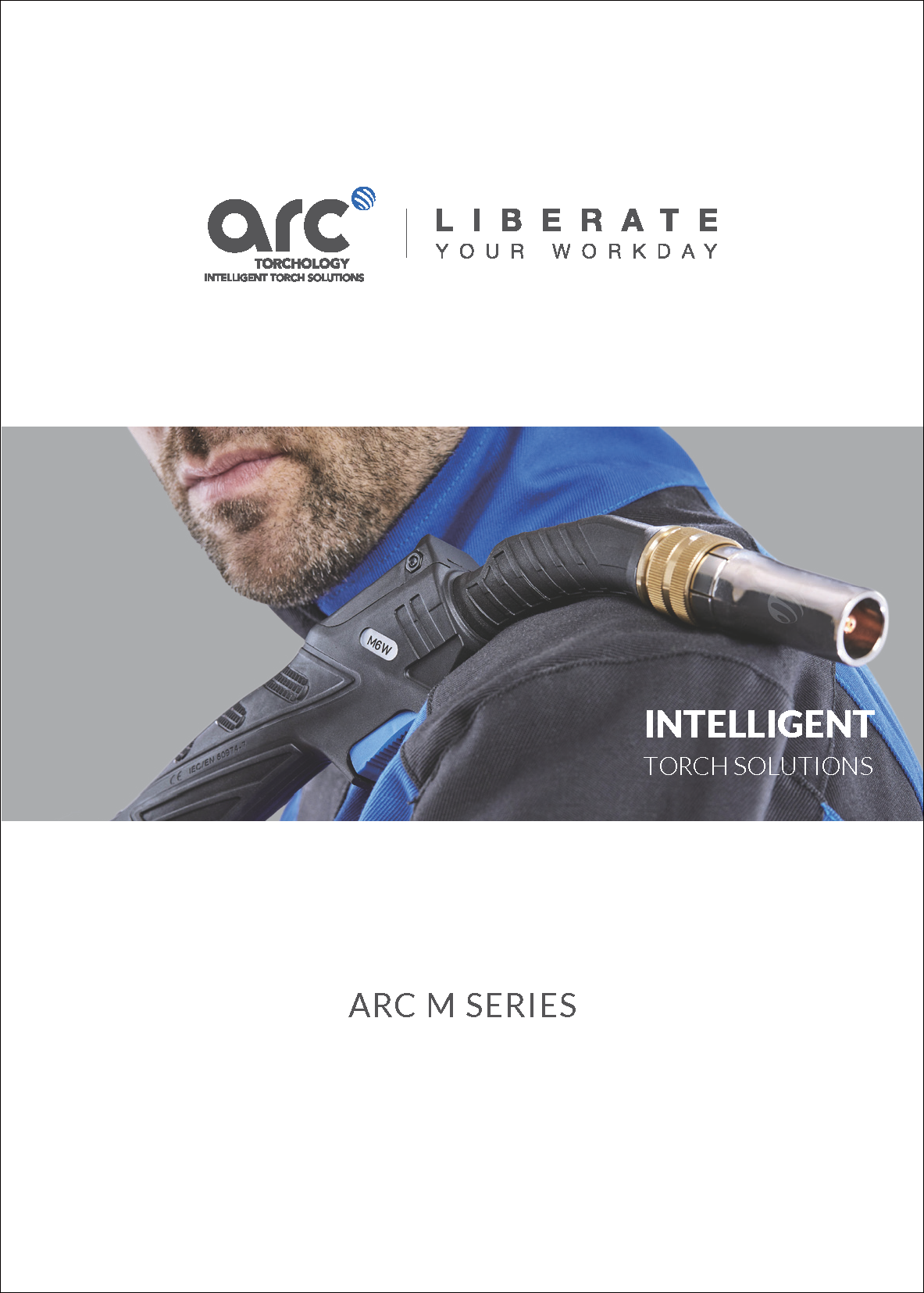

What is Arc M

Safety Information

Wear Parts Spanner

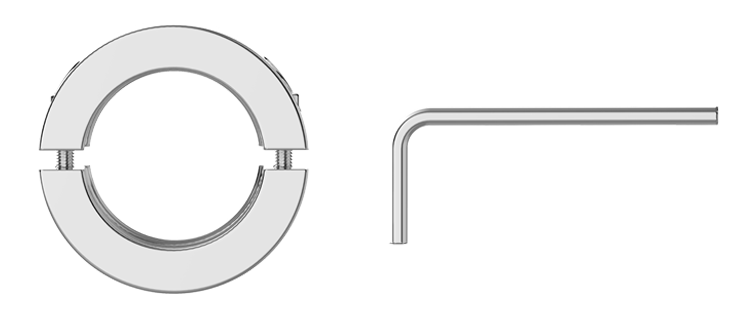

Nozzle Disassembly Kit
